AKAI S-5000 Digital Sampler with ZuluSCSI Modification
AKAI S-5000 Digital Sampler with ZuluSCSI Modification
Couldn't load pickup availability
- Free shipping over $100 Australia-wide. Postage shown at checkout.
- Free pickup at 250 Flinders St (Basement), Melbourne. Usually ready within 24 hours.

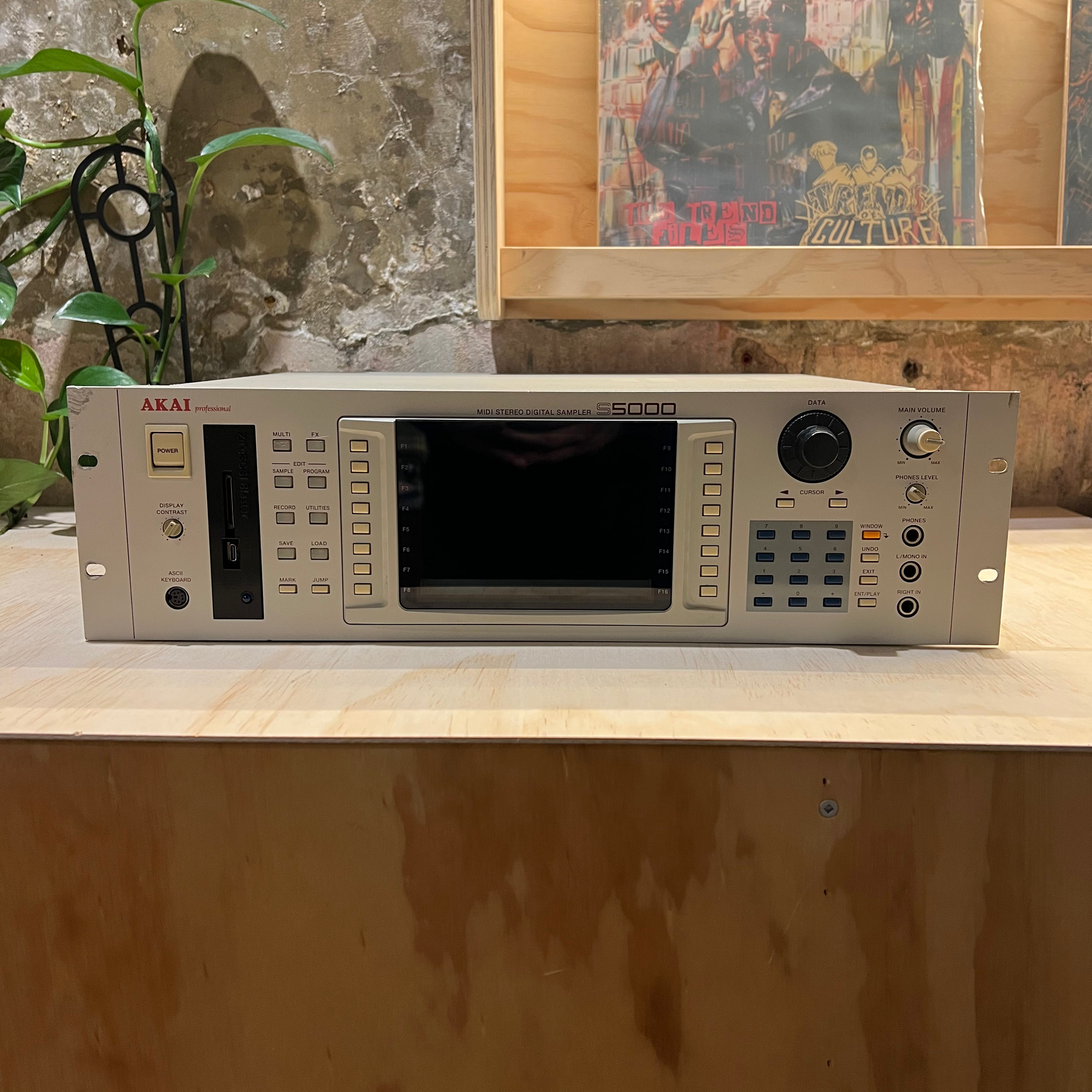

This unit has been tested and is in excellent working order. The unit is in Very Good cosmetic condition with only a few minor scuffs (as pictured).

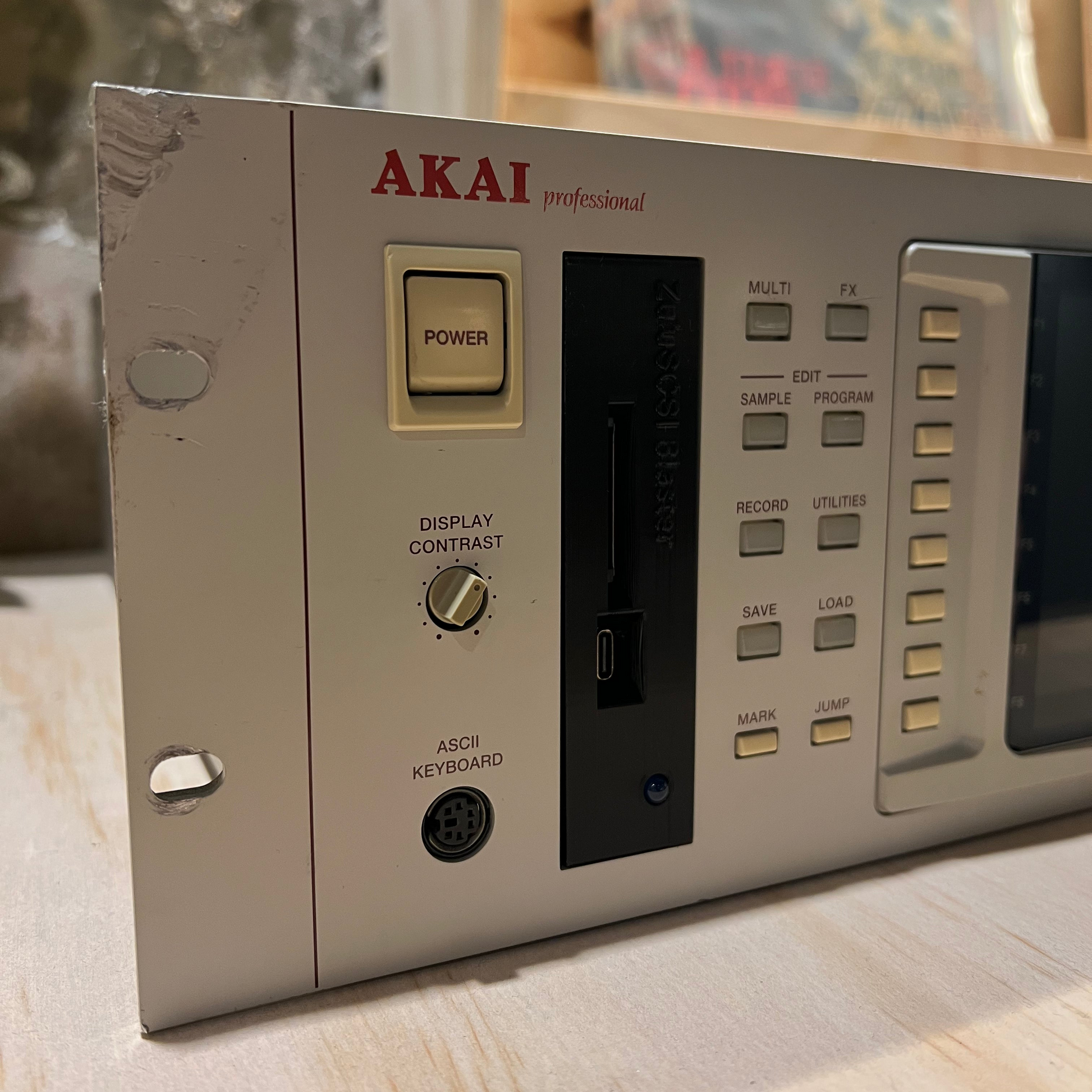

The unit has been upgraded with a ZuluSCSI allowing for SD Card / external drive capabilities instead of the classic floppy disk drive.
Key Specifications
• Polyphony: 64 voices standard, expandable to 128 voices
• Sampling Rate: 44.1 kHz and 48 kHz (16-bit linear sample bit rate, 18-bit DAC bit rate)
• Memory (RAM): Base memory expandable up to 256 MB using standard SIMMs
• Storage & Format: DOS (FAT32) disk format with native .WAV file support; loads PC WAV files directly via SCSI hard drives or optional internal drives

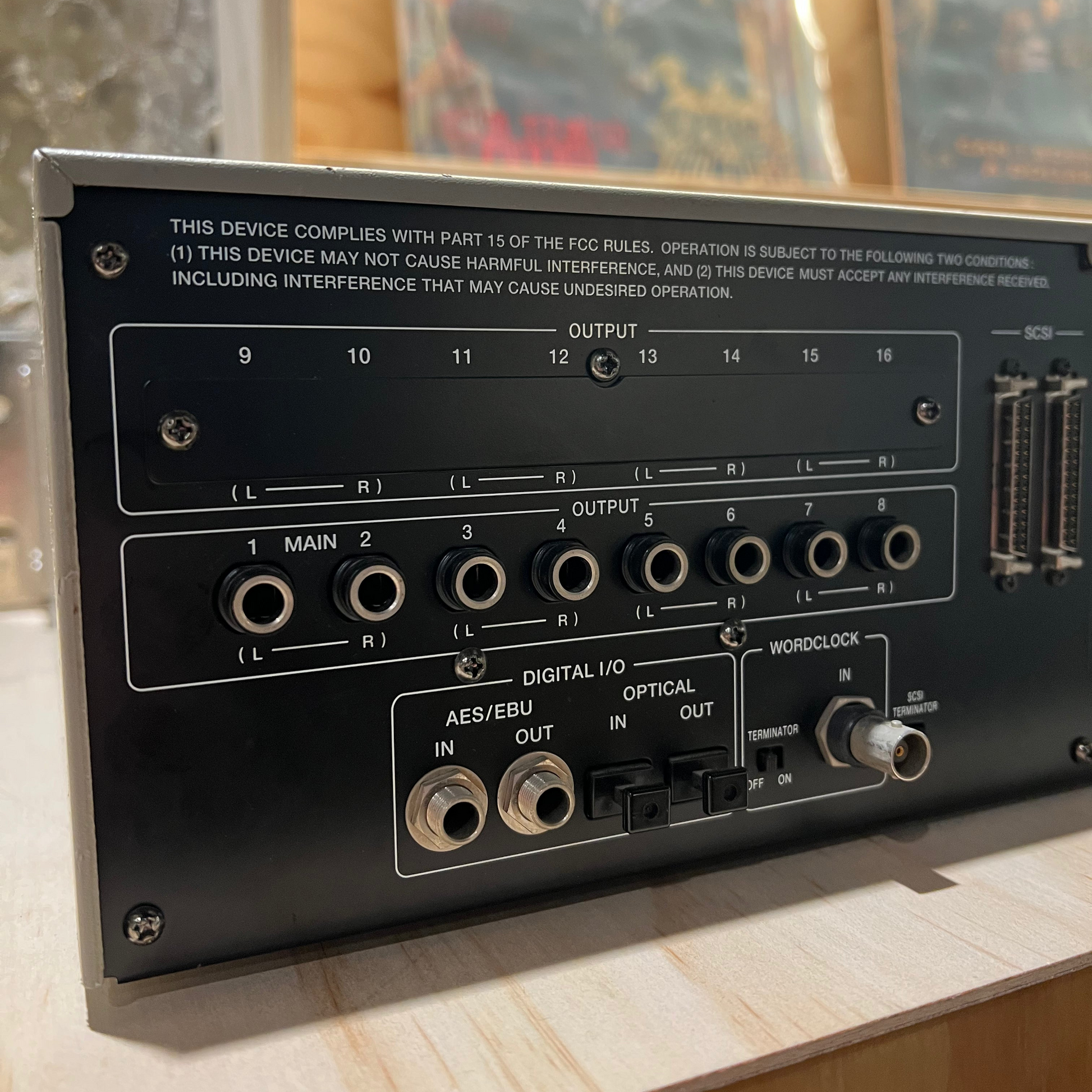

• Audio Outputs: 8 individual analog outputs (expandable to 16) plus a stereo master analog output
• Digital I/O: Stereo S/PDIF optical digital I/O (optional ADAT interface available)

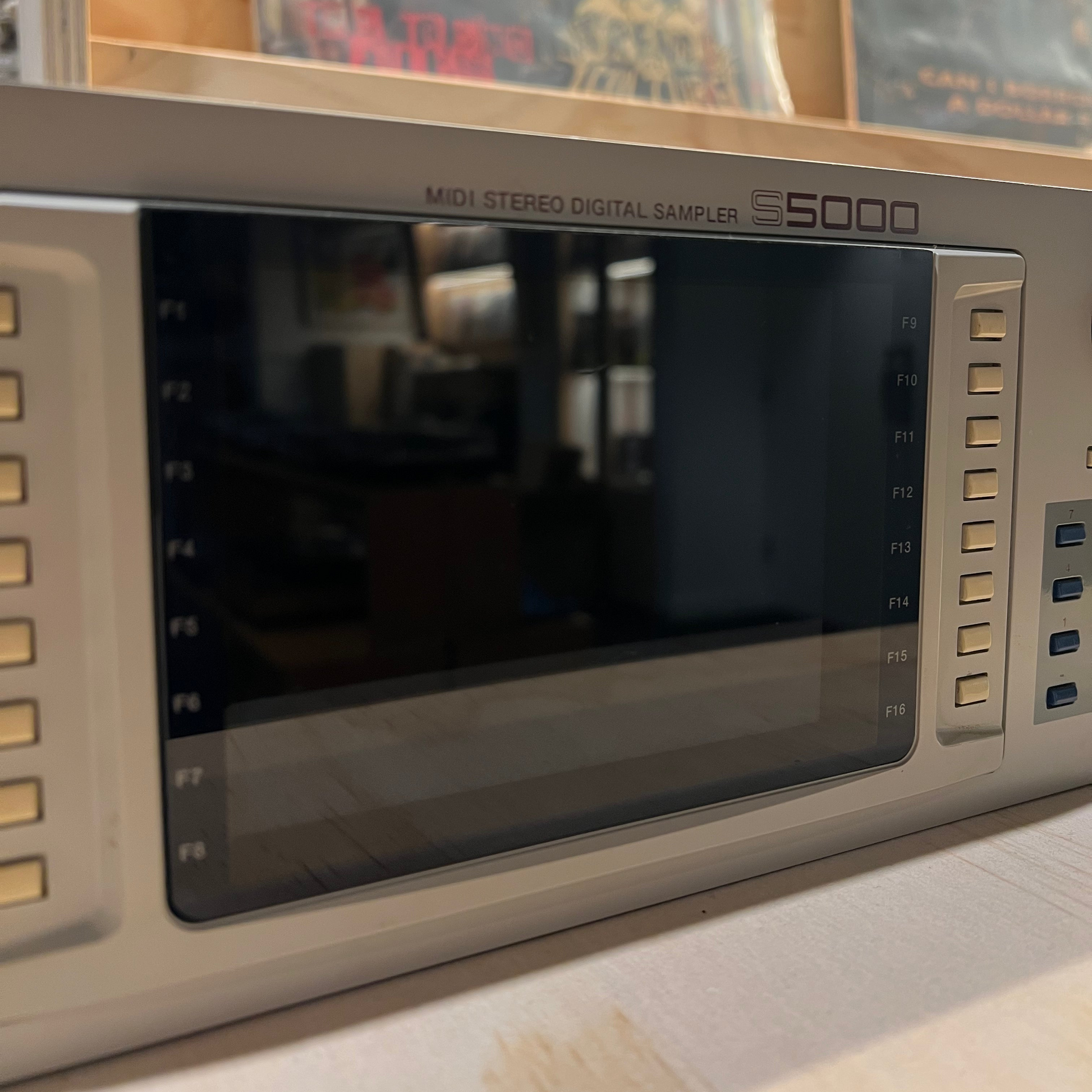

• Display: 320 x 240 backlit graphic LCD screen
• Synthesis & Processing: Assignable Program Modulation (APM) with 26 digital filter types, ADSR/multi-stage envelopes, and LFOs
• Expansion Slot: Single EB20 (SampleVerb II) effects card slot
• MIDI: Dual MIDI ports (32 channels In/Out/Thru) with MIDI clock sync
• Dimensions & Weight: 410 x 482.6 x 410 mm (3U rack size), weight approx. 8.9 kg (19.6 lbs)
