CBS Laboratories - Stereophonic Frequency Test Record (Issue 1) (LP, Gat) (Very Good Plus (VG+))

Media Condition:  Very Good Plus (VG+)
Sleeve Condition: Very Good Plus (VG+)
Country:    US
Released:  1962
Genre:       Non-Music
Style:         Technical

Comments:
Vinyl is a conservative VG+ with some light marks which do not affect play. Cover in great shape.


Notes:

Issued over 3 different releases
#1 [r=4478405
#2 [r=6970239
#3 [r=1410902

A Product of CBS Laboratories and Columbia Records.

Copyright 1961 CBS Laboratories

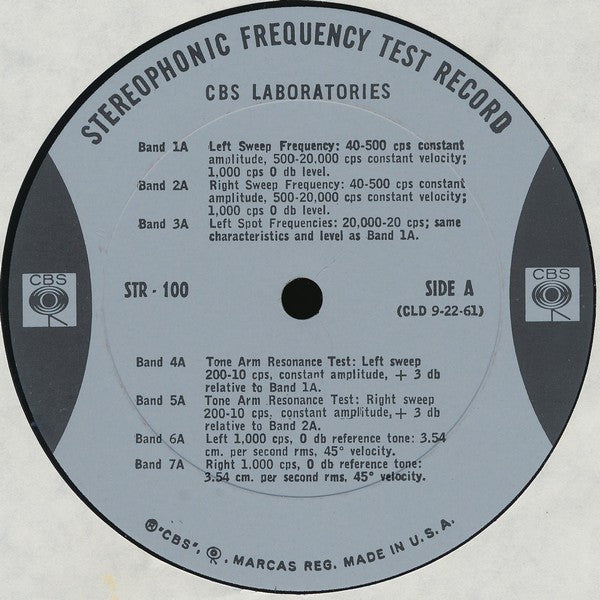

A1. Left Sweep Frequency: 40-500 Cps Constant Amplitude, 500-20.000 Cps Constant Velocity; 1,000 Cps 0 Db Level
A2. Right Sweep Frequency: 40-500 Cps Constant Amplitude, 500-20.000 Cps Constant Velocity; 1,000 Cps 0 Db Level
A3. Left Spot Frequencies: 20,000-20 Cps; Same Characteristics And Level As Band 1A
A4. Tone Arm Resonance Test: Left Sweep 200-10 Cps, Constant Amplitude, +3Db Relative To Band 1A
A5. Tone Arm Resonance Test: Right Sweep 200-10 Cps, Constant Amplitude, +3Db Relative To Band 2A
A6. Left 1,000 Cps, 0 Db Reference Tone: 3.54cm Per Second Rms, 45° Velocity
A7. Right 1,000 Cps, 0 Db Reference Tone: 3.54cm Per Second Rms, 45° Velocity

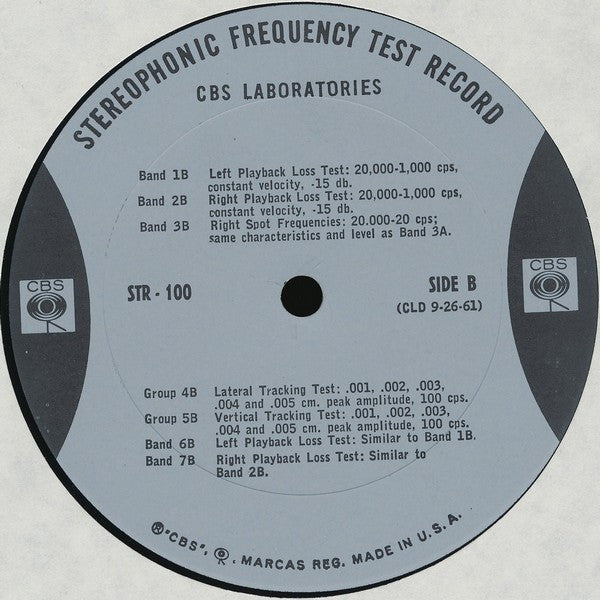

B1. Left Playback Loss Test: 20,000-1.000 Cps, Constant Velocity, -15 Db
B2. Right Playback Loss Test: 20,000-1.000 Cps, Constant Velocity, -15 Db
B3. Right Spot Frequencies: 20,000-20 Cps; Same Charcateristics And Level As Band 3A
B4. Lateral Tracking Test: .001, .002, .003, .004 And .005cm. Peak Amplitude, 100 Cps
B5. Vertical Tracking Test: .001, .002, .003, .004 And .005cm. Peak Amplitude, 100 Cps
B6. Left Playback Loss Test: Similar To Band 1B
B7. Right Playback Loss Test: Similar To Band 2B

Barcode and Other Identifiers:

Copyright (c) CBS Laboratories
